产品描述
产品属性
Battery Type: Lithium Ion
Model Number: TTN-Stacked lithium battery
Brand Name: TTN
Place Of Origin: Zhejiang, China
System Voltage: 51.2v/48v
Dimension (L*W*H): 51X56X31 cm
Weight: 58.000 kg
System Type: Wall-mounted, Stackable, Rack-mounted
Type: Split, Li-Ion/lithium/lifepo4
Communication Port: rs485, rs232
保护课: IP65
网格连接: 关闭网格
应用: Home Appliances

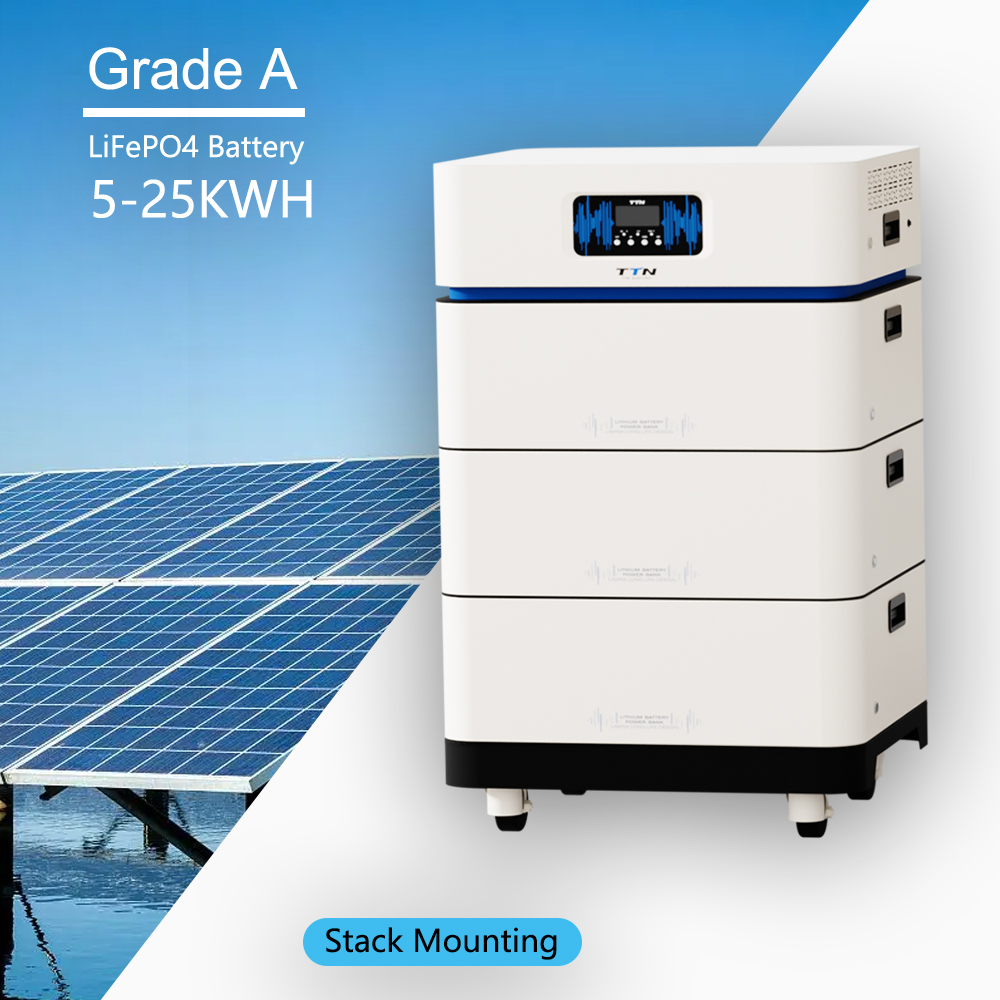

产品名称: TTN-Stacked lithium battery
Capacity: 100Ah 200Ah 300Ah 400Ah
Battery Size: Prismatic Cells
Cycle Life: 6000 Cycles
Voltage: 51.2V
关键词: Battery Lithium Lifepo4
Max Discharge Current: 100A / 150A / 200A
Warranty: 1year
输出功率范围: 20-50 kWh
产品描述
|
MODEL
|
STACK 5+5
|
STACK 5+10
|
STACK 5+15
|
STACK 5+20
|
STACK 5+25
|
||||
|
Single Module Capacity
|
5.12KWH
|
|
|
|
|
||||
|
Module Number
|
1 PCS
|
2PCS
|
3 PCS
|
4 PCS
|
5 PCS
|
||||
|
Total Capacity
|
5.12KWH
|
10.24KWH
|
15.36KWH
|
20.48KWH
|
25.6KWH
|
||||
|
Standard Voltage
|
51.2V
|
|
|
|
|
||||
|
Working Voltage
|
43.2-57.6V
|
|
|
|
|
||||
|
Standard Discharge Current
|
100A
|
200A
|
300A
|
400A
|
500A
|
||||
|
Standard Charge Current
|
50A
|
100A
|
150A
|
200A
|
250A
|
||||
|
Suggested DOD Model
|
80-90%
|
|
|
|
|
||||
|
Installation
|
Stacked
|
|
|
|
|
||||
|
IP Rating
|
IP20
|
|
|
|
|
||||
|
Communication
|
CAN/RS485/RS232(4G WIFI/Bluetooth/4G optional)
|
|
|
|
|
||||
|
Size (mm)
|
500*550*295
|
500*550*485
|
500*550*670
|
500*550*855
|
500*550*1040
|
||||
|
Net Weight
|
60kg
|
110kg
|
160kg
|
210kg
|
260kg
|
||||
